1534594-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1534594-1
Datasheet:
Description:

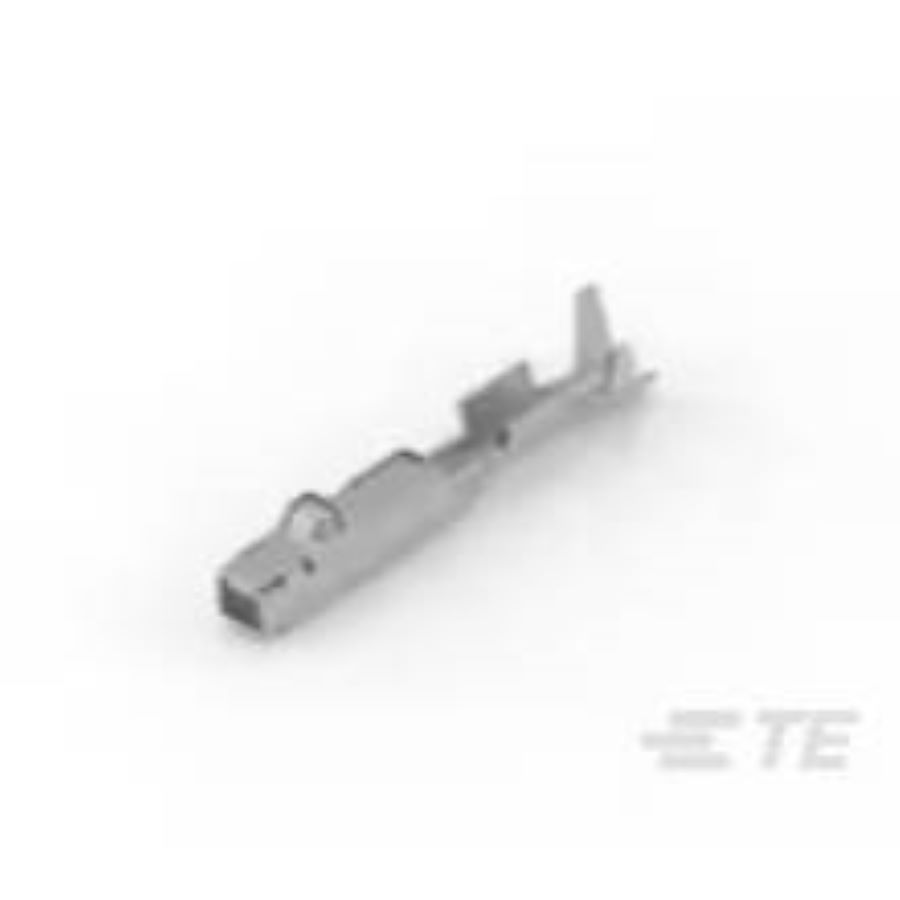

Automotive Connectors Cable Female 23 AWG to 22 AWG
| Parameter | Value |
|---|---|
| Termination | Crimp |
| Max Operating Temperature | 130 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.65 mm |
| Depth | 2.65 mm |
| Radiation Hardening | No |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 8.75 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Connector, PCB, Signal, Socket |
| Wire Gauge (Max) | 23 AWG |
| Wire Gauge (Min) | 22 AWG |
| Insulation Diameter | 1.75 mm |
| Contact Gender | Female |
| Mating Tab Width | 1.2 mm |
| Tab Thickness | 600 µm |
| Sealable | No |
| Packaging | Reel |
| RoHS | Compliant |
| Wire Gauge Range | 23 AWG to 22 AWG |
Stock: 61800
Distributors
pcbx
pcbxUnit Price$0.40444
Ext.Price$0.40444
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40444 | $0.40444 |
| 10 | $0.20222 | $2.02220 |
| 50 | $0.15555 | $7.77750 |
| 100 | $0.11965 | $11.96500 |
| 500 | $0.09204 | $46.02000 |
| 1000 | $0.07080 | $70.80000 |
| 3000 | $0.05446 | $163.38000 |
| 5000 | $0.04189 | $209.45000 |
| 10000 | $0.04189 | $418.90000 |
| 30000 | $0.03505 | $1051.50000 |
| 50000 | $0.03445 | $1722.50000 |
